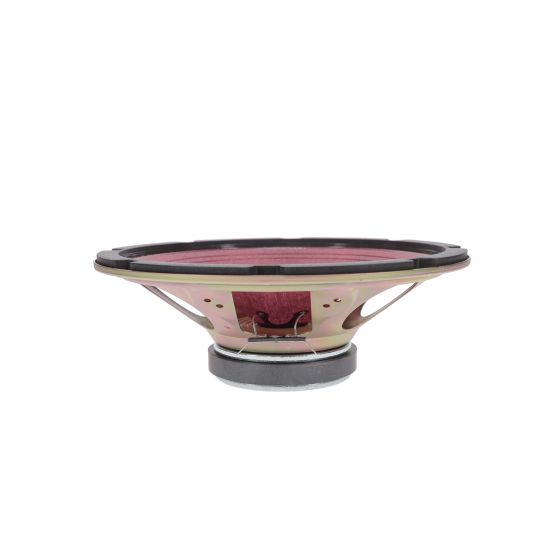

8 Inch (203 mm) Waterproof, Wide Range Speaker
Brand Name
MISCO OEM
Part #
JC8WP
$27.30
In stock
(9 on hand)
The most durable outdoor 8" cone speaker available, this speaker can be used for voice communications and music. Its high sensitivity can make small amplifiers sound larger. The acrylic-treated cloth cone, surround, and dust cap provide additional years of projected life (depending on environment). It features an eight-hole mount design for ease of front or rear flush mounting. It can also come with a 70-volt transformer attached andmounts to a standard 8" ceiling baffle.
- Acrylic-treated cone and edge compliance
- Voice / Communications Applications
- 30 watts program power
- Aluminum voice coil form
- High Energy (HE) Ferrite magnet
- Steel Basket construction
- Available with 70 Volt Transformer
This speaker front or rear mountable.
Download Product Specifications (PDF) »
| Brand Name | MISCO OEM |
|---|---|
| Speaker Type | Full Range |
| Shape of Speaker | Round |
| Size, Nominal (inch & mm) | 8" (203 mm) |
| Environment | Outdoor |
| Application | Commercial, Indoor, Outdoor , Transit, Voice Communications |
| RoHS Compliant | No |
| Rated Impedance (Ω) | 8 |
| Rated Power IEC268-5 (W) | 15 Watts |
| Program Power (W) | 15.0 |
| Sensitivity (dB SPL) ¹ | 94 |
| Frequency Range (Hz) | 50 - 8,000 |
| DC Resistance (Re) (Ω) | 6.8 |
| Resonant Frequency (Fs) (Hz) +/- 15% | 99 |
| Nominal Impedance (Z) (Ω) | 8 |
| Voice Coil Inductance (Le) (mH) | 0 |
| Mechanical Q Factor (Qms) | 4.4 |
| Electrical Q Factor (Qes) | 1.3 |
| Total Q Factor (Qts) | 1.01 |
| Basket Type | Stamped Steel with zinc plating |
| Terminal Size (mm) | 5.7 x 0.5 mm |
| Voice Coil Diameter (mm) | 25.4 |
| Voice Coil Wire Material | copper |
| Voice Coil Former Material | Aluminum |
| Magnet Material | Ferrite |
| Magnet Weight (g) | 284 |
| Cone Body Material | Red Acrylic Treated Cloth |
| Cone Surround Material | Red Acrylic Treated Cloth |
| Spider Material | Cotton |
| Dust Cap Material | Red Acrylic Treated Cloth |
| Net Weight (kg) | 0.90 |
| Technical Notes | ¹ Sensitivity is measured with 2.83 volt input, measured on-axis at 1 meter distance |
